PiCAN 2 Duo (Carte CAN-Bus pour Raspberry Pi)

  • MarqueSK Pang Electronics

Description

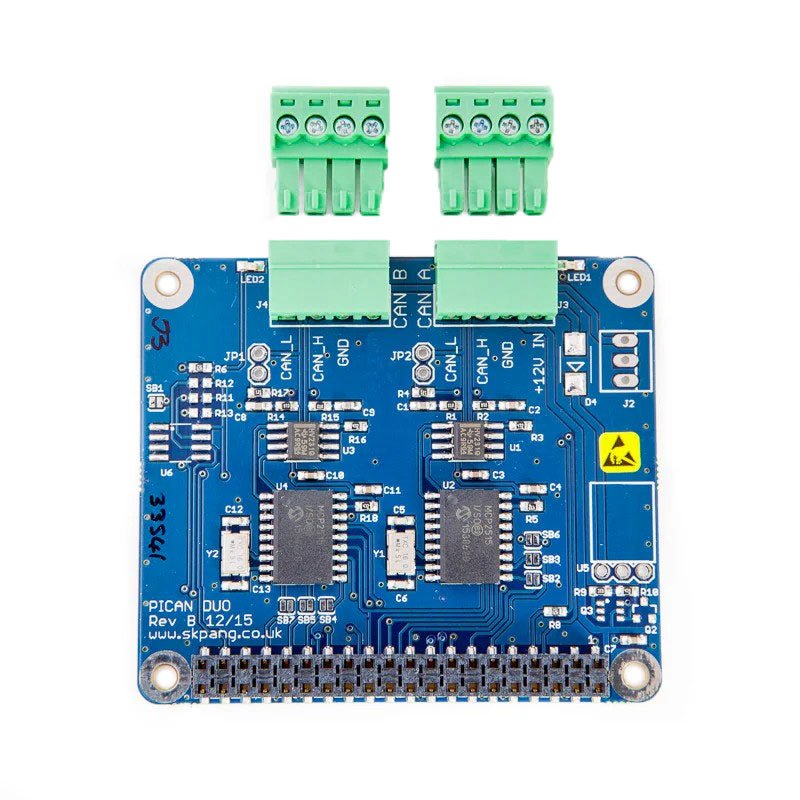

The PiCAN2 Duo board provides two independent CAN-Bus channels for the Raspberry Pi 2, 3, and 4. It uses the Microchip MCP2515 CAN controller, with connections made via a 4-way screw terminal.

An easy-to-install SocketCAN driver is available, and programming can be done in C or Python.

Caractéristiques

  • CAN v2.0B at 1 Mb/s
  • High speed SPI Interface (10 MHz)
  • Standard and extended data and remote frames
  • CAN connection screw terminal
  • 120Ω terminator ready
  • Serial LCD ready
  • LED indicator
  • Four fixing holes, comply with Pi Hat standard
  • SocketCAN driver, appears as can0 and can1 to application
  • Interrupt RX on GPIO25 and GPIO24

Caractéristiques

Fiche produit

The PiCAN2 Duo board provides two independent CAN-Bus channels for the Raspberry Pi 2, 3, and 4. It uses the Microchip MCP2515... Lire la suite

€ 74,95 TVA incluse
Membres € 67,46

    • Expédier aujourd'hui ? Commandez dans Apr 02, 2025 17:00:00 +0200

    Détails

    SKU : 18676
    EAN : 018676

    Description

    The PiCAN2 Duo board provides two independent CAN-Bus channels for the Raspberry Pi 2, 3, and 4. It uses the Microchip MCP2515 CAN controller, with connections made via a 4-way screw terminal.

    An easy-to-install SocketCAN driver is available, and programming can be done in C or Python.

    Caractéristiques

    • CAN v2.0B at 1 Mb/s
    • High speed SPI Interface (10 MHz)
    • Standard and extended data and remote frames
    • CAN connection screw terminal
    • 120Ω terminator ready
    • Serial LCD ready
    • LED indicator
    • Four fixing holes, comply with Pi Hat standard
    • SocketCAN driver, appears as can0 and can1 to application
    • Interrupt RX on GPIO25 and GPIO24

    Caractéristiques
