LILYGO T-Display-GD32 RISC-V Development Board

  • MarqueLILYGO

Description

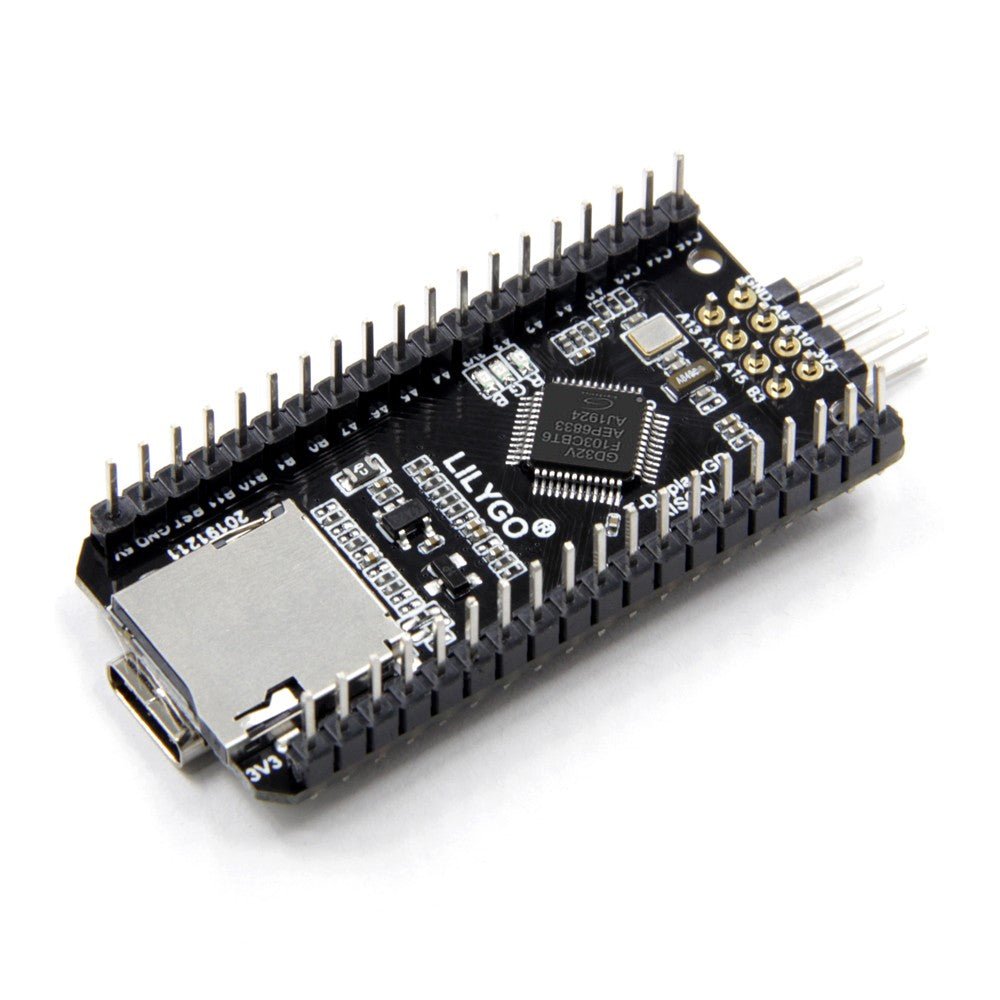

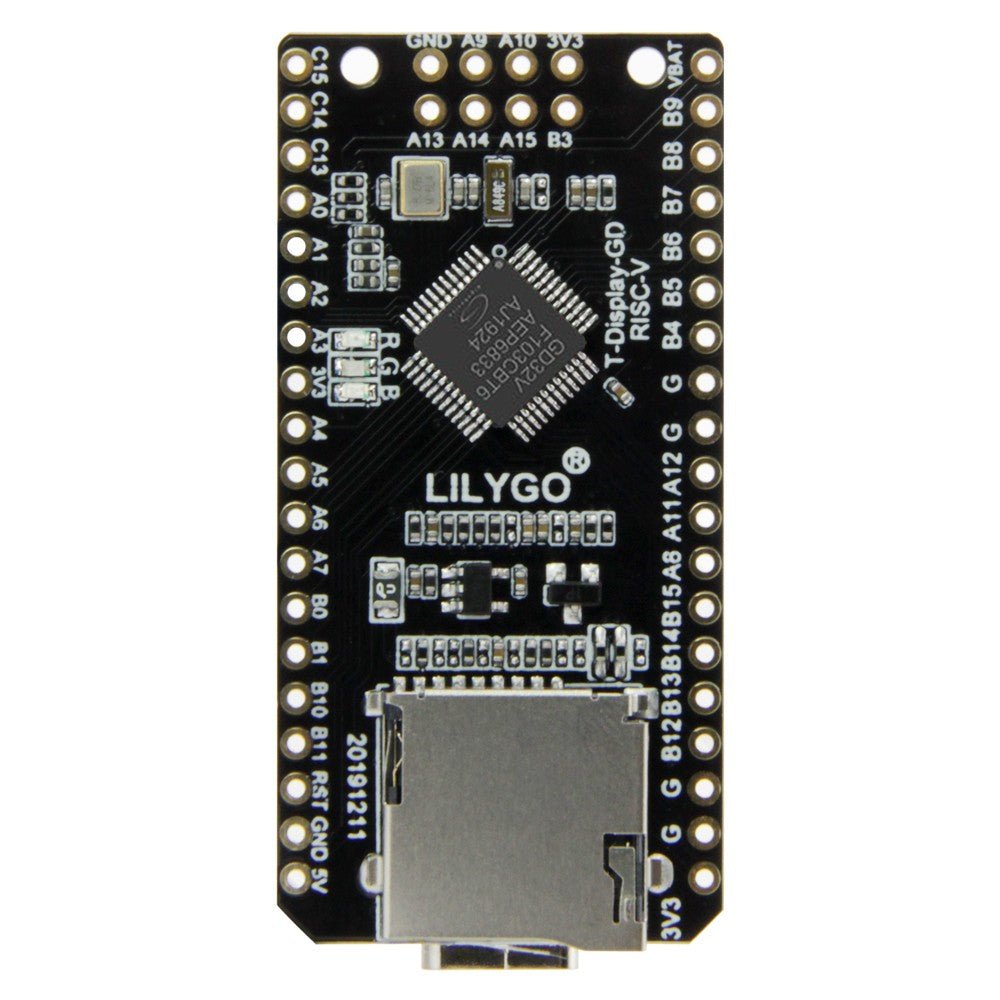

The LILYGO TTGO T-Display-GD32 is a compact and minimalist development board featuring a powerful GD32VF103CBT6 RISC-V microcontroller.

Ideal for IoT applications, wearables, and rapid prototyping, it provides versatile connectivity options like GPIO, SPI, UART, and I²C interfaces. Thanks to its efficient RISC-V architecture and clear, high-quality screen, this board is perfect for small projects requiring graphical interfaces or data visualization in a space-saving form factor.

Specifications

Chipset GD32VF103CBT6
FLASH 128 kB
SRAM 32 kB
On-board clock 108 MHz crystal oscillator
Working Voltage 2.7-3.6 V
Button BOOT - RESET

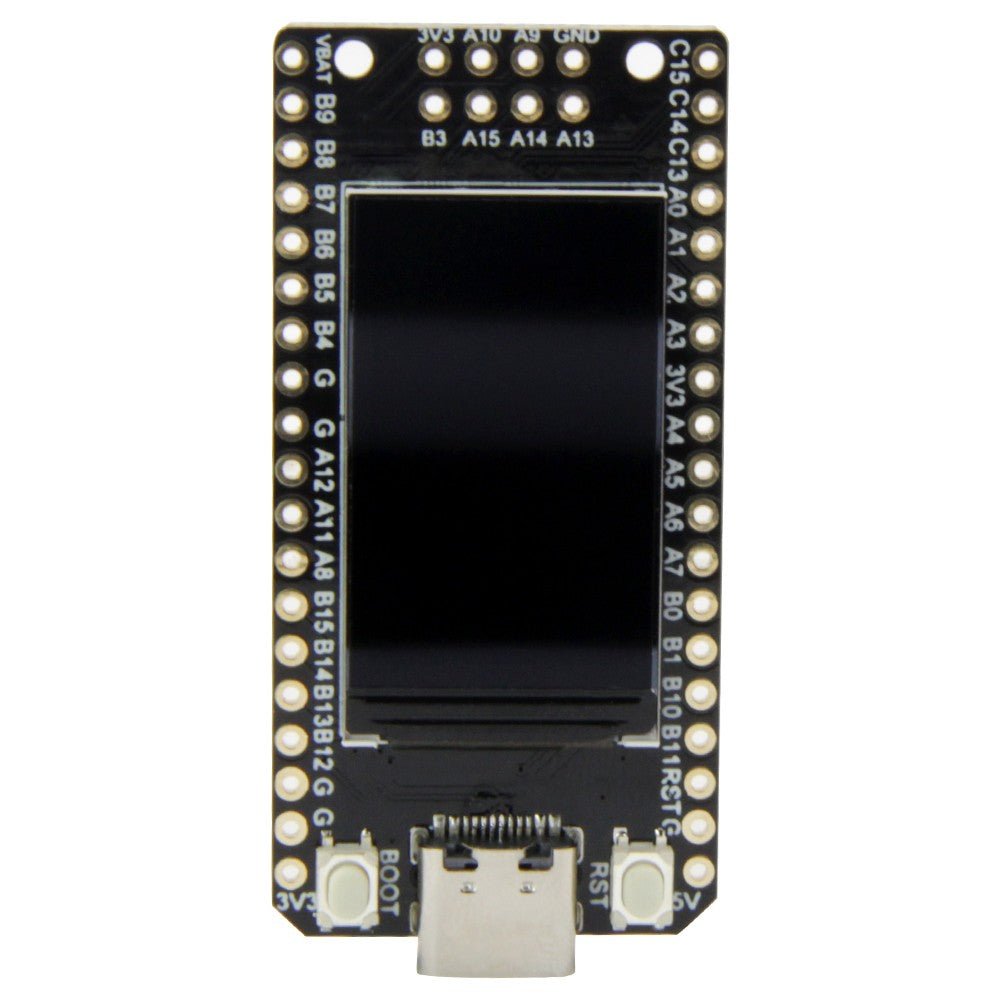

LCD ST7789 1.14" IPS 240 x 135
USB to TTL CP2104
Modular interface TIMER, UART, SPI, I²C, PWM, ADC, DAC, CAN, USBOTG
Working Temperature Range −40~85°C
Peripheral Button, RGB LED, SD slot, LCD
Power Supply Input USB 5 V @ 1 A
Charging Current 500 mA
Battery Input 3.7-4.2 V
USB USB-C
Dimensions 51.49 x 25.2 x 10 mm
Weight 10 g

Downloads

Fiche produit

The LILYGO TTGO T-Display-GD32 is a compact and minimalist development board featuring a powerful GD32VF103CBT6 RISC-V microcontroller. Ideal for IoT... Lire la suite

Rupture de stock

€ 22,95 TVA incluse
Membres € 20,66

    Détails

    SKU : 19510
    EAN : ZY2012

    Description

    The LILYGO TTGO T-Display-GD32 is a compact and minimalist development board featuring a powerful GD32VF103CBT6 RISC-V microcontroller.

    Ideal for IoT applications, wearables, and rapid prototyping, it provides versatile connectivity options like GPIO, SPI, UART, and I²C interfaces. Thanks to its efficient RISC-V architecture and clear, high-quality screen, this board is perfect for small projects requiring graphical interfaces or data visualization in a space-saving form factor.

    Specifications

    Chipset GD32VF103CBT6
    FLASH 128 kB
    SRAM 32 kB
    On-board clock 108 MHz crystal oscillator
    Working Voltage 2.7-3.6 V
    Button BOOT - RESET
    LCD ST7789 1.14" IPS 240 x 135
    USB to TTL CP2104
    Modular interface TIMER, UART, SPI, I²C, PWM, ADC, DAC, CAN, USBOTG
    Working Temperature Range −40~85°C
    Peripheral Button, RGB LED, SD slot, LCD
    Power Supply Input USB 5 V @ 1 A
    Charging Current 500 mA
    Battery Input 3.7-4.2 V
    USB USB-C
    Dimensions 51.49 x 25.2 x 10 mm
    Weight 10 g

    Downloads
