JOY-iT 64x64 Module matriciel LED RVB

  • MarqueJOY-iT

Description

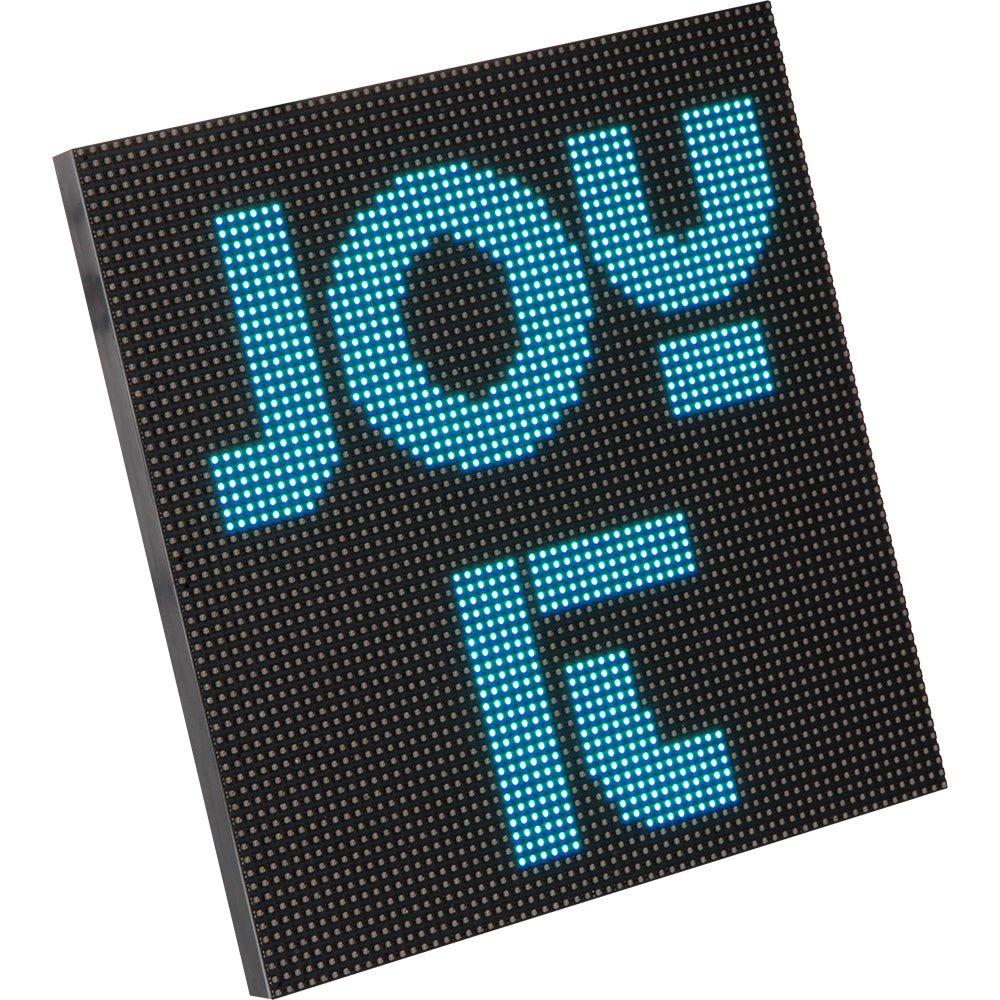

The RGB matrix module is equipped with 4096 LEDs and is characterized by a particularly small grid size of only 3mm. This makes it ideal for pictorial representations. Video sequences can also be displayed.

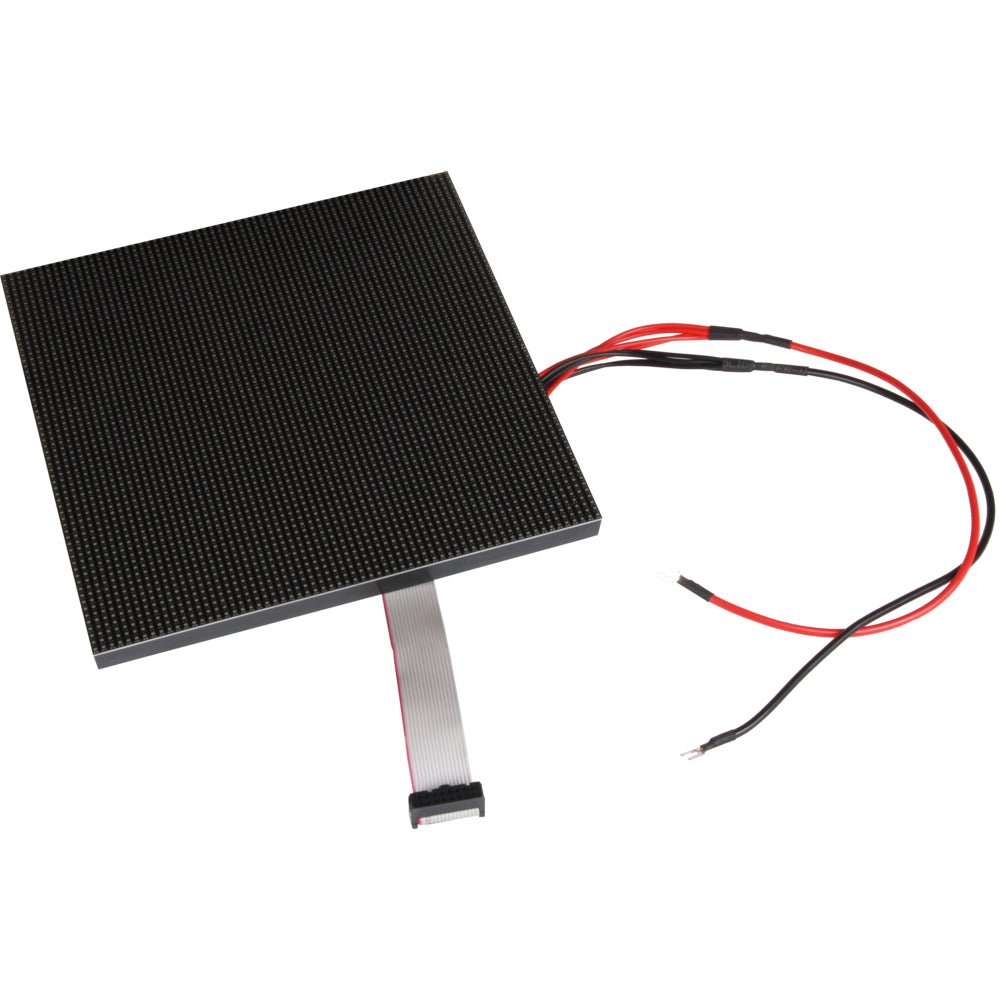

The module is supplied with the necessary cables. It is perfectly suited in combinations with single board computers like the Raspberry Pi, Arduino, BBC Microbit and many more.

Specifications

Display RGB-LED
Resolution 64 x 64
Amount of LED 4096 LEDs
LED Size 3 mm Pitch
Supply Voltage 5 V
Max. Power Input 40 W
Control 1/32 Scan
Operating Temperature -20~55°C
Viewing Angle 140°
Pixel Density 111111 Pixel/m²
Dimensions 192 x 192 x 14 mm
Weight 246 g
Items Shipped LED-Matrix, Kabel

Downloads

Fiche produit

The RGB matrix module is equipped with 4096 LEDs and is characterized by a particularly small grid size of only... Lire la suite

€ 59,95 TVA incluse
Membres € 53,96

      Détails

      SKU : 19376
      EAN : 4250236818085

      Description

      The RGB matrix module is equipped with 4096 LEDs and is characterized by a particularly small grid size of only 3mm. This makes it ideal for pictorial representations. Video sequences can also be displayed.

      The module is supplied with the necessary cables. It is perfectly suited in combinations with single board computers like the Raspberry Pi, Arduino, BBC Microbit and many more.

      Specifications

      Display RGB-LED
      Resolution 64 x 64
      Amount of LED 4096 LEDs
      LED Size 3 mm Pitch
      Supply Voltage 5 V
      Max. Power Input 40 W
      Control 1/32 Scan
      Operating Temperature -20~55°C
      Viewing Angle 140°
      Pixel Density 111111 Pixel/m²
      Dimensions 192 x 192 x 14 mm
      Weight 246 g
      Items Shipped LED-Matrix, Kabel

      Downloads
